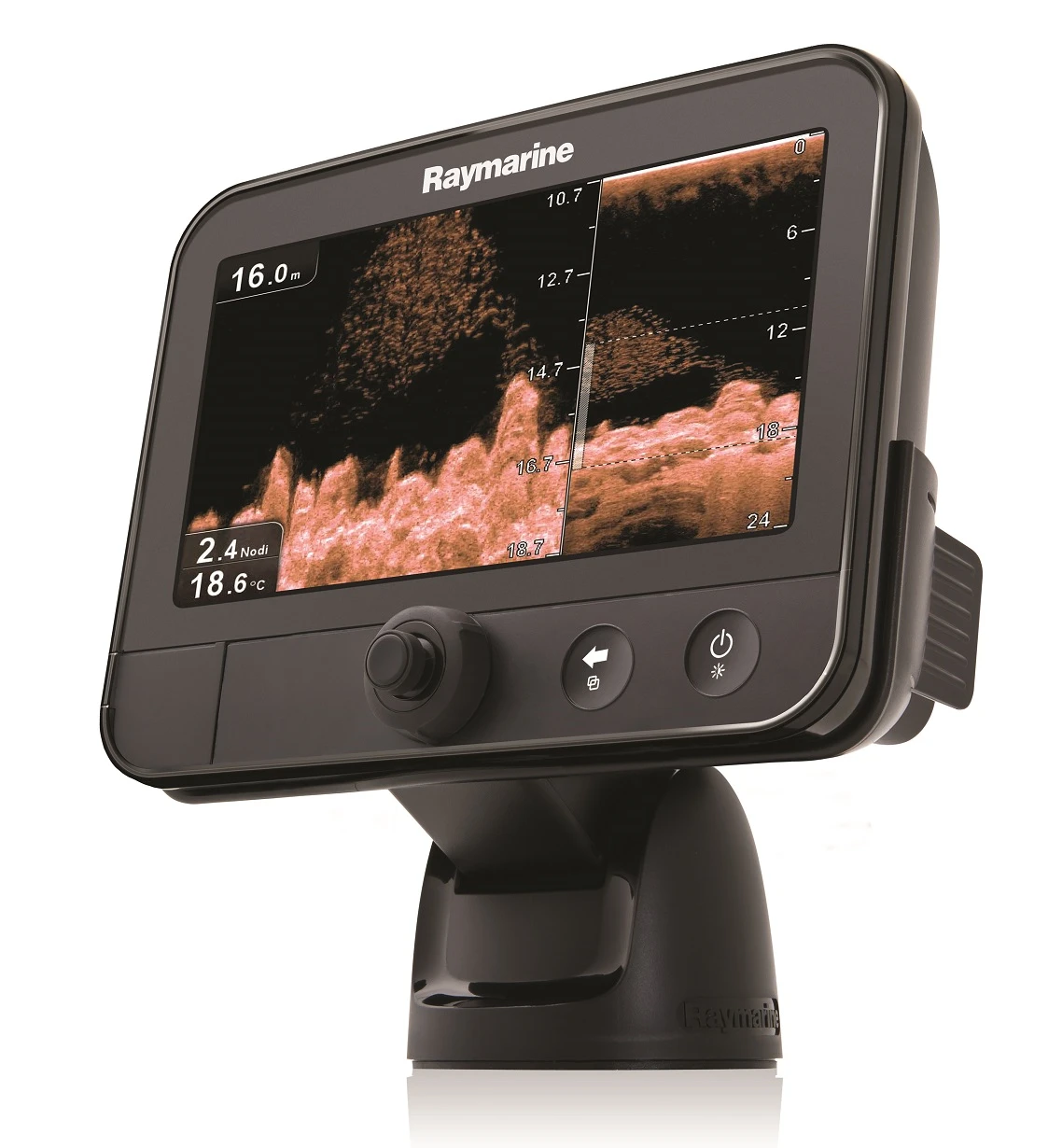

Raymarine Dragonfly 7 With Transducer & EU Silver Chart

MPN: E70231-EU

See Q & A's

Expected Date:

This product has been discontinued - This product has been replaced by the following:

Price Match Promise
Have you seen this item for less elsewhere?

Description

This unit will come with the CPT-60 Transducer and the European Silver Chart.
Raymarine's award winning CHIRP DownVision technology gives anglers underwater vision so close to reality, we call it Visionality!

Dual Channel CHIRP

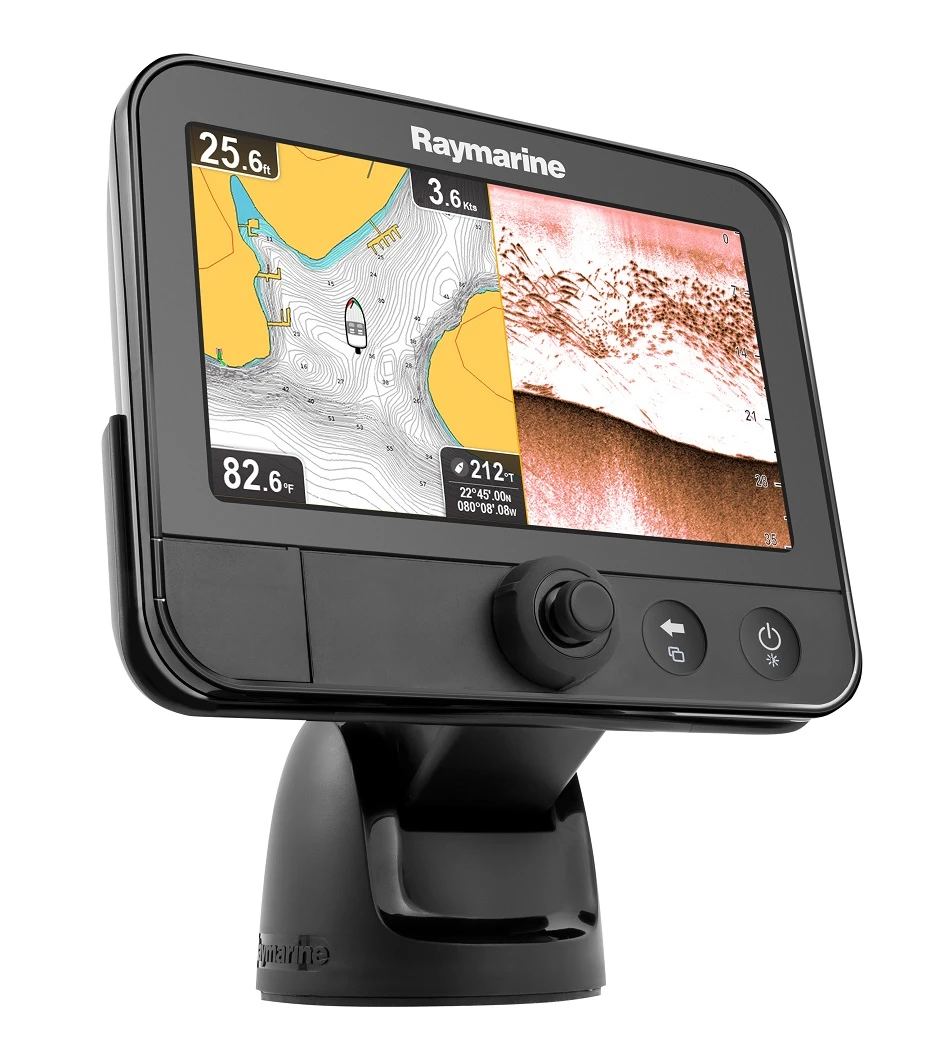

Dragonfly includes two discrete CHIRP sonar channels, the first is an ultra-high resolution DownVision channel and the second is a high-resolution fish targeting sonar channel. View each sonar channel independently or switch to dual sonar split screen mode for the ultimate underwater intelligence.
Unlike conventional imaging sonars that transmit a single frequency with each pulse, Dragonfly's DownVision sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse - the result is a much higher-resolution, life-like sonar images.

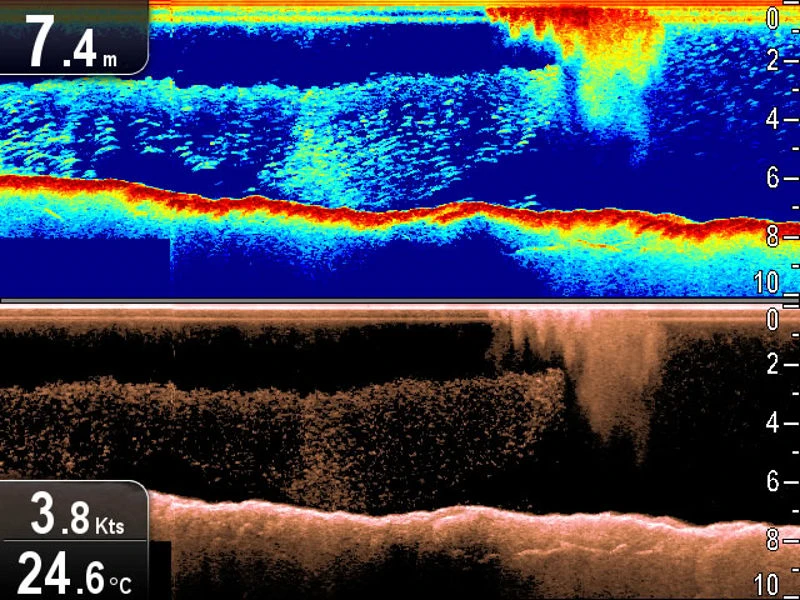

The amazing sonar imagery above is from actual Dragonfly owners. To see more of Dragonfly's real world performance please visit our media area.
Capture a great shot on your Dragonfly and you could win back the cost of your display. Plus we have lots of free Dragonfly accessories to give away.
Whether you are a professional guide or weekend bass angler, you will appreciate Dragonfly’s cutting edge sonar performance and simple operation. Simply dial through sonar and GPS displays and quickly become a Dragonfly expert.

Features

Serious technology for everyone
Easy Screen Switcher
Automatic Sonar Optimisation; No Adjustment Required
Unique dual-beam CHIRP transducer - CHIRP sonar and CHIRP DownVision™ in one
Simple Three Button Control
Uni-controller - joystick cursor and rotary dial
MicroSD chart and memory reader

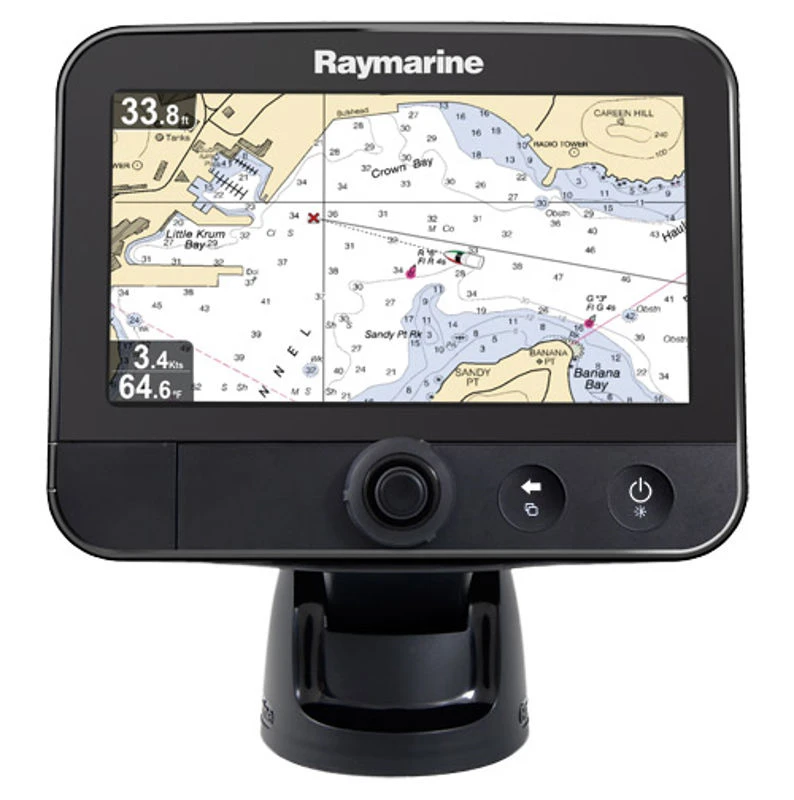

Powerful Chartplotter
Dragonfly and Dragonfly7 Transducers - Transom mount, trolling motor and through-hull
Dragonfly utilises dual-channel CHIRP transducers. DownVision produces a 60° side-to-side and 1.4° fore to aft beam. The second element provides a conical shaped beam for imaging fish targets, ensuring you will never miss any of the action below your boat.
Just power on and fish!

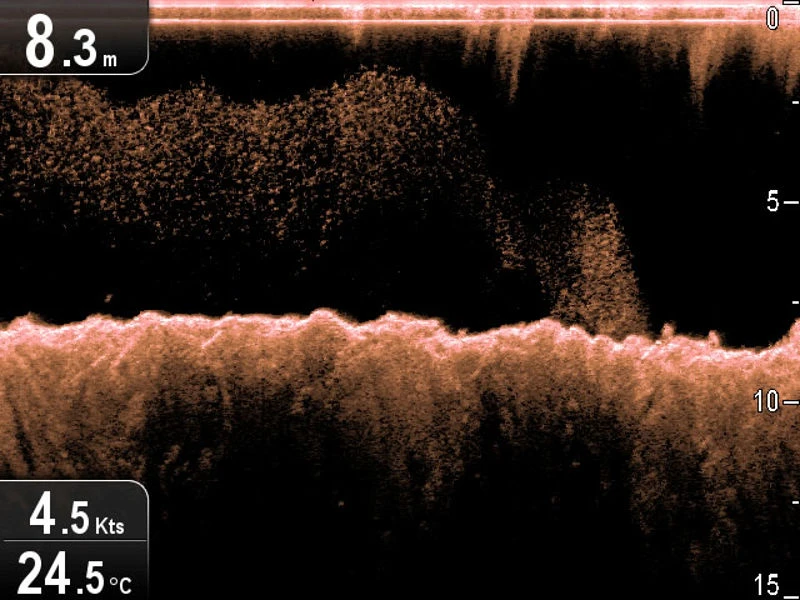

Photo-like imagery of bottom structure using CHIRP DownVision™
CHIRP powered Dual Channel sonar; display high resolution structure images and target fish at the same time
Fast response temperature sensor built into the transducer
Built in 50-channel GPS sensor with fast-acquisition technology
Available with industry leading, Navionics charts included on microSD.
Intuitive user interface simplifies display choices and menu options
Ideal for open cockpit installations thanks to spray and submersion protection to IPX6 and IPX7 standards
Tilt/swivel quick release holster with optional locking core for added security.

Specification

Nominal supply voltage: 12v
Operating voltage range: 10.8 - 15.6v
Power consumption at full brightness: 10 watts
Connections: Power/transducer combined input
Waterproofing standard: IPX 6 and IPX 7

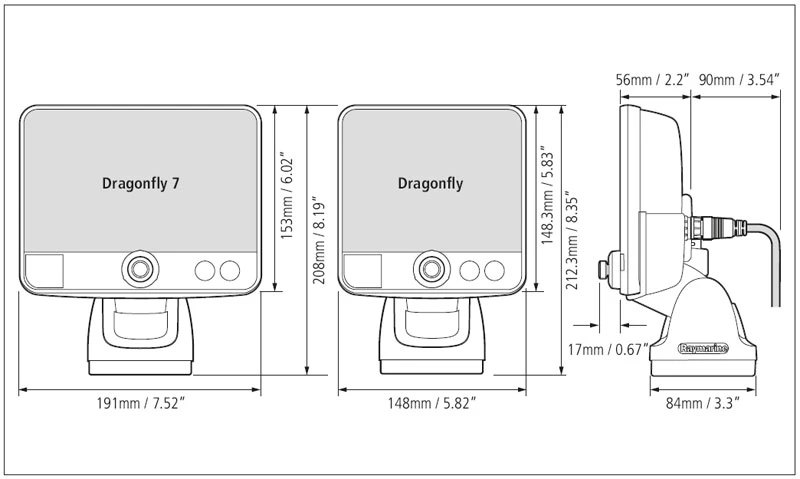

Display size: Dragonfly: 5.7" | Dragonfly7: 7"
Display resolution: Dragonfly: 640 x 480 | Dragonfly7: 800 x 640
Brightness: 1500 nits
GPS and Cartography: GPS 50 Channel Internal
Chart Compatibility: LightHouse Vector and Raster Charts, Navionics Silver, Gold and HotMaps
Waypoints: 3000
Tracks: 15 tracks of up to 10,000 trackpoints
Chart Media: microSD
Sonar Type: CHIRP Sonar - CPT-60 dual-beam CHIRP transducer supplied with product (unless 'display only' in title) (Cable length 6m)
Sonar Channels: 2
Depth Range: CHIRP DownVision and CHIRP Sonar imagery 600ft
1 year Warranty
*Please note this unit will be sent direct from Raymarine and will take around 1-4 working days.
